Go No Go Gauge

Meaning ~ Manual limit gauges establish dimensional tolerance compliance by physically verifying that a part feature fits within specified material boundaries.

04.10.26 8 min

Limits

Attribute standards verify manufactured parts against dimensional boundaries without measuring them numerically. Known commonly as a go no go gauge, this dual-element verification instrument allows a machinist or quality inspector to accept or reject a feature based on whether one physical limit standard clears the feature while the other is blocked. The go element checks the maximum material state, where the part retains the most material permitted by the drawing, while the no-go element checks the least material condition to confirm that machining has not removed too much stock.

On a receiving dock checking an incoming lot of five hundred custom stainless-steel collar bushings, a dual-member plug gauge provides a definitive bore check without the setup time of digital calipers or coordinate measuring machines. This pass-fail check matches the geometric dimensioning and tolerancing principles in ASME Y14.5, where the maximum material condition sets the boundary of perfect form; any workpiece that fails to accept the go member violates assembly requirements and is rejected.

ASME Y14.43 establishes that the choice of dimensioning policy for custom limit tools directly shifts the balance of compliance risk between the factory floor and receiving inspectors.

External features like pins and shafts call for ring or snap gauges, while internal bores and keyways require plug gauges. The check relies entirely on tactile feedback: a bore passes only when the go member slides through the full depth of the hole and the no-go member fails to enter. If both ends clear the bore, the hole is oversized; if neither fits, it is undersized, and in either case the part fails inspection.

Portable electronic material testing devices and a tray of metallic calibration strips rest on a black work mat at a shipping port.

Tolerance

Standard manufacturing classifications sort plain cylindrical gauges into precision grades based on their allowable fabrication error. Standards such as ASME B89.1.5 and ISO 1938-1 define these grades across classes XX, X, Y, Z, and ZZ, where Class XX offers the tightest precision and Class ZZ permits the widest toolmaker variation. Tighter part tolerances demand higher-class gauges, driving up tooling costs and requiring shorter calibration cycles.

Toolmakers typically apply a ten percent rule of thumb, reserving ten percent of the workpiece tolerance band for gauge manufacturing limits.

ASME B89.1.5 Cylindrical Gauge Tolerances for Specified Diameters
Diameter Range (Inches) Class XX (Inches) Class X (Inches) Class Y (Inches) Class Z (Inches)
0.010 to 0.825 0.000020 0.000040 0.000070 0.000100
0.825 to 1.510 0.000030 0.000060 0.000090 0.000120
1.510 to 2.510 0.000040 0.000080 0.000120 0.000160
Methods note: Gauge tolerances represent the maximum allowable variation in the tool’s diameter during fabrication, typically targeted at ten percent of the product’s dimensional tolerance.

A wear allowance is often applied to the go member to account for the friction of high-volume manual cycles. Shifting the starting diameter slightly into the part tolerance band extends tool life before wear brings the gauge out of calibration. The no-go member needs no wear allowance because it rarely enters the part and sees little friction.

Selecting an improper tolerance class or neglecting gauge wear compromises the integrity of quality screening.

  • go no go gauge selection with too loose a class allows out-of-spec workpieces to pass through the filter.
  • go no go gauge purchases that target excessively high precision, such as Class XX, generate unnecessary tooling expenses for the factory.
  • go no go gauge designs omitting wear allowances trigger premature gauge retirement because of rapid dimensional changes from friction.

Procuring rings or plugs with tolerances too wide for the drawing creates a high risk of accepting non-conforming parts, leading to assembly stalls, field failures, and costly recall campaigns.

A stereomicroscope with a metal articulating arm and a mechanical dial gauge sits on a dark production quality assurance workbench.

Bench

Manual inspection relies on light hand pressure, clean surfaces, and proper alignment. Forcing a plug into a bore can elastically deform ductile alloys like aluminum and copper or distort thin-walled polymer tubes, falsely passing an undersized hole. Hardened tool steel, typically between 58 and 64 HRC, resists abrasive wear during repeated checks but will gouge softer part metals if inserted off-axis.

  1. Clean the workpiece and both ends of the inspection tool to remove all grease, grit, or cutting fluid.
  2. Align the GO member axially with the bore of the part under inspection without tilting or forcing.
  3. Apply light pressure, allowing the weight of the tool to slide through the full depth of the hole.
  4. Attempt to insert the NO-GO member, verifying that it does not enter the bore beyond the initial chamfer of the part.

Threaded features involve more complex checks than simple cylindrical bores because a thread gauge must evaluate pitch diameter, lead error, and flank angle at the same time. To accommodate lead-in burrs and incomplete starting threads, standard protocols permit the no-go thread plug to turn into the hole by up to two full turns before the part is formally rejected.

Precision gauges wear down with every manual cycle, meaning that frequent checks against a setting master prevent the unintended acceptance of out-of-tolerance components.

Allowing the gauge’s own weight to carry it into the bore minimizes hand deflection and protects the calibrated gauging surfaces from premature abrasion.

Dispute

Disagreements between suppliers and buyers arise when part dimensions fall right on tolerance boundaries. ASME Y14.43 outlines two core approaches: the absolute policy and the practical absolute policy. The absolute policy, or pessimistic method, places the gauge manufacturing tolerance entirely inside the workpiece tolerance band.

This shrinks the factory’s usable machining window but guarantees that out-of-spec parts are never accepted. The practical absolute policy places gauge limits directly on or slightly past the boundary, reducing false rejections for the manufacturer while transferring marginal acceptance risk to the customer.

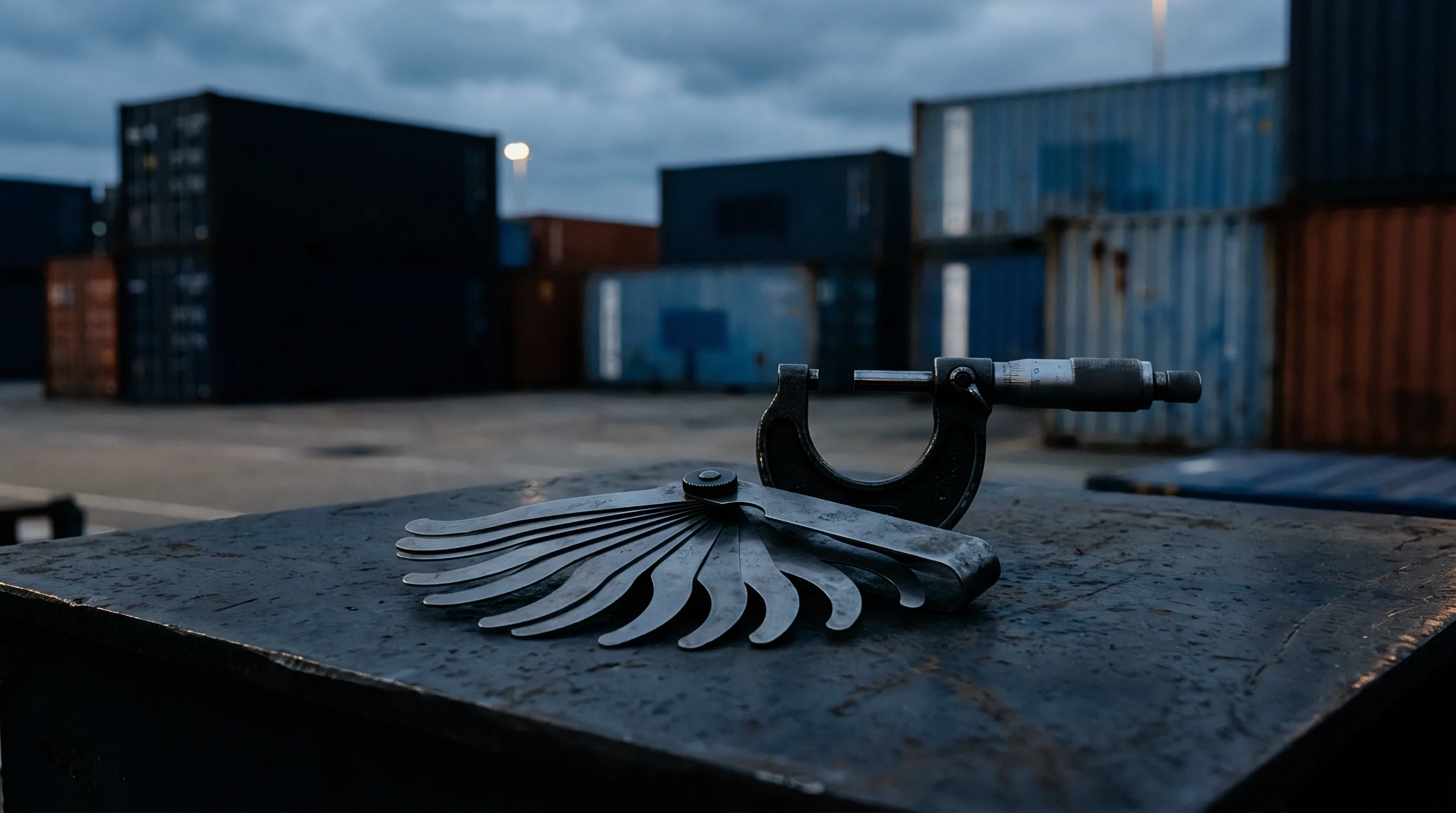

A stainless steel micrometer and radius gauge rest upon a dark metal surface outside a logistics shipping yard.

How Does Force Affect the Inspection Outcome?

Operator technique regularly causes discrepancies during receiving audits. An inspector applying twenty Newtons of force can push a no-go plug into a borderline bore that an inspector applying five Newtons would turn away. Standardizing engagement force, using torque-limiting handles, or employing guided fixtures eliminates these inconsistencies.

For threaded holes, quality contracts should explicitly define allowable turn limits for no-go members to prevent disputes over incomplete entrance threads.

Invoking ASME B89.7.3.1 decision rules establishes the practical absolute policy as the legal baseline, protecting buyers from out-of-spec deliveries by assigning measurement uncertainty costs to the supplier.

Dock

Receiving inspection at destination controls product acceptance and triggers commercial release of funds. Importers use sampling plans under ISO 2859-1 or ANSI/ASQ Z1.4 to verify shipments against defined Acceptance Quality Limit thresholds rather than gauging every piece in large production runs. If non-conforming parts exceed the allowable count for that sample size, the entire lot is placed on hold pending disposition.

A handheld testing device and an open unit revealing electronics and a dial are positioned on a table in a logistics or production facility.

Who Bears the Cost of Borderline Rejections?

Undetected gauge wear and transport-related drift introduce commercial exposure for both trading partners. Rejecting a lot at destination triggers freight return costs, demurrage, third-party sorting, and rush replacement runs that can exceed the shipment value. Stating the exact calibration protocols, gauge classes, and acceptance standards on the purchase order prevents these disputes before parts ship.

  • go no go gauge purchase orders need to specify the exact governing standard, such as ASME B89.1.5, to ensure manufacturing consistency.
  • go no go gauge documentation has to include a traceable calibration certificate listing actual measured diameters for both members.
  • go no go gauge procurement contracts are more robust when they clearly define the wear limits that trigger gauge replacement, establishing a clear line for decommissioning.
Mating parts with complex geometries assemble successfully only when the inspectorial tool mimics the physical envelope of the boundary component.

Suppliers frequently counter that parts were machined within print tolerance and that rejections stemmed from worn receiving gauges that fell past their allowable limits.

Precision measurement tools and industrial material samples rest on a dark workbench within a cavernous steel hull structure illuminated by a single porthole.

Arithmetic

Setting gauge limits requires dividing the workpiece tolerance zone between toolmaker fabrication margins and wear allowances. For an internal bore on a steel flange with a nominal diameter of 25.000 mm and a bilateral tolerance of +0.050 / -0.000 mm, the total tolerance band is 0.050 mm. The maximum material condition is 25.000 mm, and the least material condition is 25.050 mm.

Under the standard ten percent rule, the total gauge maker tolerance is 0.005 mm. ASME Y14.43 absolute tolerancing places this allocation inside the part limits. The GO plug, checking the 25.000 mm low limit, takes a positive tolerance from 25.000 mm to 25.005 mm.

The NO-GO plug, checking the 25.050 mm high limit, takes a negative tolerance from 25.045 mm to 25.050 mm.

Dimensional Comparison of Sizing Policies for a Bore with Limits of 25.000 to 25.050 mm
Policy Type GO Plug Dimension (mm) NO-GO Plug Dimension (mm) Buyer Risk Producer Risk
Absolute Policy 25.000 to 25.005 25.045 to 25.050 Zero High
Optimistic Policy 24.995 to 25.000 25.050 to 25.055 High Low

Adding a wear allowance of twenty percent of the gauge tolerance adds 0.001 mm to the GO member, shifting its fabrication target to 25.001 mm through 25.006 mm. This extends the working life of the plug but narrows the supplier’s effective machining window from 0.050 mm to 0.044 mm. An optimistic policy places gauge tolerances outside drawing limits, widening the machining band to 0.060 mm while accepting bores from 24.995 mm to 25.055 mm.

Balancing the manufacturing margin of wider part tolerances against the calibration overhead and assembly risks of accepting borderline components remains an ongoing trade-off in precision manufacturing.

Nomenclature

Wear Allowance

Meaning ~ Intentional dimensional offsets added to the Go member of fixed limit gauges compensate for material loss caused by friction during routine inspection duties.

ISO 1938-1

Meaning ~ International standardized specifications published by the International Organization for Standardization govern the design, tolerance limits, and functional verification of plain limit gauges.

ASME B89.1.5

Meaning ~ Standard specifications established by the American Society of Mechanical Engineers set the physical criteria for evaluating master ring gauges and plug gauges used in dimensional metrology.

Pass Fail Test

Meaning ~ Attribute verification procedures evaluate physical components against binary acceptance criteria without measuring exact numerical dimensions.

Plug Gauge

Meaning ~ Precision dimensional inspection instruments verify the internal diameter limits of machined holes, bores, and internal threads.

Maximum Material Condition

Meaning ~ Dimensional tolerance limits define the boundary condition where a manufactured feature contains the greatest possible amount of solid material within its specified limits.

Attribute Inspection

Meaning ~ Quality control methodology sorting manufactured output into binary categories based on predefined acceptance criteria rather than recording exact physical dimensions.

Guard Band

Meaning ~ A frequency buffer provides a separation distance between adjacent channels in a transmission spectrum to prevent signal leakage and interference.

Thread Gauge

Meaning ~ Precision thread inspection instruments verify the pitch diameter, functional profile, and lead accuracy of internal and external screw threads.

Conformance Statement

Meaning ~ Vendor verification documentation establishes whether manufactured lots meet agreed technical specifications before dispatch occurs.

Dimensional Inspection

Meaning ~ Quality control procedures that verify the physical geometry of manufactured parts against engineering specifications form a critical baseline for mechanical component sourcing.

Plain Limit Gauge

Meaning ~ A physical inspection instrument employed in manufacturing workshops to verify that external dimensions fall within predefined maximum and allowable limits of size.
